SAN Storage
VTrak D5800
4U 24-bay flagship dual-controller SAN — maximum spindles and streams for finishing rooms and dense virtualization.
Genuine VTrak D5800 hardware with full manufacturer warranty, configuration review on every order, and formal line-itemed quotes from our US-based team.
Order
VTrak D5800 Part Numbers
D5800FXD (FC + 10G SFP+)
9 part numbersAll configurations: 4U 24-bay · dual active-active controllers · unified Fibre Channel + 10 GbE SFP+ (iSCSI/NAS) host connectivity
D5800FXDAB0
VTrak D5800FXD — Diskless (64 GB Cache, 8 × 32 Gb FC)
- Capacity
- —
- Drive Configuration
- —
- Controller Cache
- 64 GB (16 GB × 4)
- FC Host Ports
- 8 × 32 Gb
Diskless build-to-order chassis with 64 GB controller cache and 8 × 32 Gb FC — populate all 24 bays with your own drives.

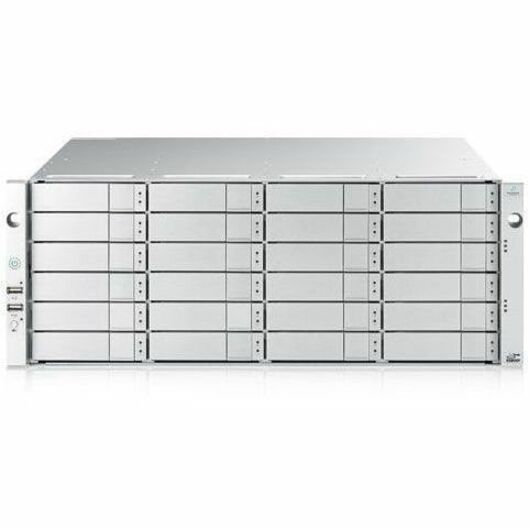

D5800FXDAED
VTrak D5800FXD — Diskless (8 × 16 Gb FC + 4 × 10 GbE)
- Capacity
- —
- Drive Configuration
- —
- Controller Cache
- —
- FC Host Ports
- 8 × 16 Gb
Diskless chassis on the 16 Gb FC controller option — for shops standardized on existing 16 Gb fabrics.
VTD5800FXDT04U
VTrak D5800FXD — 96 TB All-Flash (24 × 4 TB SAS SSD)
- Capacity
- 96 TB
- Drive Configuration
- 24 × 4 TB SAS SSD
- Controller Cache
- 32 GB (16 GB × 2)
- FC Host Ports
- 8 × 16/32 Gb
Only all-flash config in the group — 24 SAS SSDs for IOPS-heavy or many-stream work over Fibre Channel.
D5800FXDAGD
VTrak D5800FXD — 288 TB (24 × 12 TB HDD)
- Capacity
- 288 TB
- Drive Configuration
- 24 × 12 TB HDD
- Controller Cache
- —
- FC Host Ports
- 8 × 16/32 Gb
Mid-range 288 TB factory build for shared FC editing storage or backup targets.
D5800FXDAHD
VTrak D5800FXD — 336 TB (24 × 14 TB NL-SAS HDD)
- Capacity
- 336 TB
- Drive Configuration
- 24 × 14 TB NL-SAS HDD
- Controller Cache
- 32 GB (16 GB × 2)
- FC Host Ports
- 8 × 16/32 Gb
336 TB of NL-SAS with 32 GB cache — balanced capacity for multi-stream Fibre Channel workflows.
VTD5800FXD16TU
VTrak D5800FXD — 384 TB (24 × 16 TB HDD)
- Capacity
- 384 TB
- Drive Configuration
- 24 × 16 TB HDD
- Controller Cache
- —
- FC Host Ports
- 8 × 16/32 Gb
384 TB factory build — a step up from the 14 TB config without moving to top-tier drive sizes.
VTD5800FXD18TU
VTrak D5800FXD — 432 TB (24 × 18 TB HDD)
- Capacity
- 432 TB
- Drive Configuration
- 24 × 18 TB HDD
- Controller Cache
- —
- FC Host Ports
- 8 × 16/32 Gb
432 TB in 24 bays for larger shared-edit or archive pools on the FC unified controller.
VTD5800FXD20TU
VTrak D5800FXD — 480 TB (24 × 20 TB NL-SAS HDD)
- Capacity
- 480 TB
- Drive Configuration
- 24 × 20 TB NL-SAS HDD
- Controller Cache
- 32 GB (16 GB × 2)
- FC Host Ports
- 8 × 32 Gb
480 TB with 8 × 32 Gb FC ports — high-capacity tier just below the flagship 22 TB build.
VTD5800FXD22TX
VTrak D5800FXD — 528 TB (24 × 22 TB NL-SAS HDD)
- Capacity
- 528 TB
- Drive Configuration
- 24 × 22 TB NL-SAS HDD
- Controller Cache
- 32 GB (16 GB × 2)
- FC Host Ports
- 8 × 32 Gb
Maximum-capacity HDD build in this group: 528 TB across 24 × 22 TB NL-SAS drives with 32 Gb FC.
D5800XD (iSCSI / SAS)
15 part numbersAll configurations: 4U 24-bay · dual active-active controllers · iSCSI/NAS over Ethernet host connectivity
D5800XDAB0
VTrak D5800XD — Diskless (16 GB Cache)
- Capacity
- —
- Drive Configuration
- —
- Ethernet Host Ports
- 4 × 10 GbE SFP+
- Controller Cache
- 16 GB
Lowest-entry dual-controller chassis: diskless 10 GbE iSCSI/NAS unit with base 16 GB cache — add your own drives.
VTD5800YXDXXXX
VTrak D5800YXD — Diskless (10/25 GbE)
- Capacity
- —
- Drive Configuration
- —
- Ethernet Host Ports
- 4 × 10 GbE SFP+ + 4 × 25 GbE SFP28
- Controller Cache
- —
Diskless chassis on the 25 GbE-capable controller — build your own drive set for a 10/25 GbE iSCSI/NAS SAN.
D5800XDACD
VTrak D5800XD — 192 TB (24 × 8 TB NL-SAS HDD)
- Capacity
- 192 TB
- Drive Configuration
- 24 × 8 TB NL-SAS HDD
- Ethernet Host Ports
- 4 × 10 GbE SFP+
- Controller Cache
- 32 GB (16 GB × 2)
Entry 192 TB factory build on the 10 GbE controller for backup and surveillance pools.
VTD5800YXD08TX
VTrak D5800YXD — 192 TB (24 × 8 TB HDD)
- Capacity
- 192 TB
- Drive Configuration
- 24 × 8 TB HDD
- Ethernet Host Ports
- 4 × 10 GbE SFP+ + 4 × 25 GbE SFP28
- Controller Cache
- —
192 TB starter build with the 25 GbE-capable controller for faster per-client streams.
VTD5800YXD10TX
VTrak D5800YXD — 240 TB (24 × 10 TB NL-SAS HDD)
- Capacity
- 240 TB
- Drive Configuration
- 24 × 10 TB NL-SAS HDD
- Ethernet Host Ports
- 4 × 10 GbE SFP+ + 4 × 25 GbE SFP28
- Controller Cache
- 64 GB (16 GB × 4)
240 TB with 64 GB cache on the 10/25 GbE controller — sized for mid-size ingest and edit pools.
VTD5800YXD12TX
VTrak D5800YXD — 288 TB (24 × 12 TB NL-SAS HDD)
- Capacity
- 288 TB
- Drive Configuration
- 24 × 12 TB NL-SAS HDD
- Ethernet Host Ports
- 4 × 10 GbE SFP+ + 4 × 25 GbE SFP28
- Controller Cache
- 64 GB (16 GB × 4)
288 TB with 64 GB cache and 10/25 GbE — one drive-size step up from the 240 TB build.

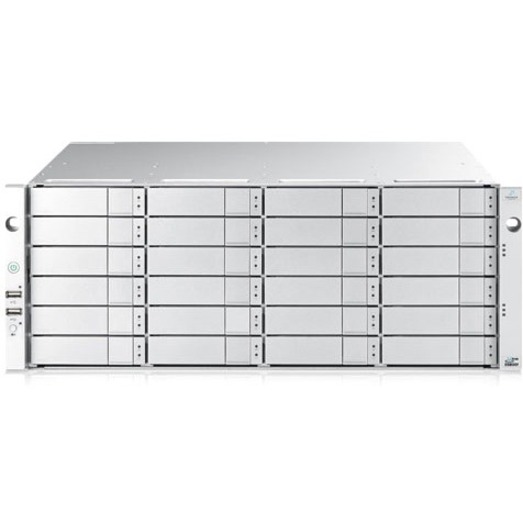

D5800XDAHD
VTrak D5800XD — 336 TB (24 × 14 TB 7.2K SAS HDD)
- Capacity
- 336 TB
- Drive Configuration
- 24 × 14 TB 7.2K 12G SAS HDD
- Ethernet Host Ports
- 4 × 10 GbE SFP+
- Controller Cache
- —
336 TB of 7,200 rpm 12G SAS drives on the 10 GbE controller — dense capacity without paying for 25 GbE.
VTD5800YXD14TX
VTrak D5800YXD — 336 TB (24 × 14 TB NL-SAS HDD)
- Capacity
- 336 TB
- Drive Configuration
- 24 × 14 TB NL-SAS HDD
- Ethernet Host Ports
- 4 × 10 GbE SFP+ + 4 × 25 GbE SFP28
- Controller Cache
- 64 GB (16 GB × 4)
336 TB with 64 GB cache and 25 GbE uplinks for higher-bandwidth NAS/iSCSI clients.

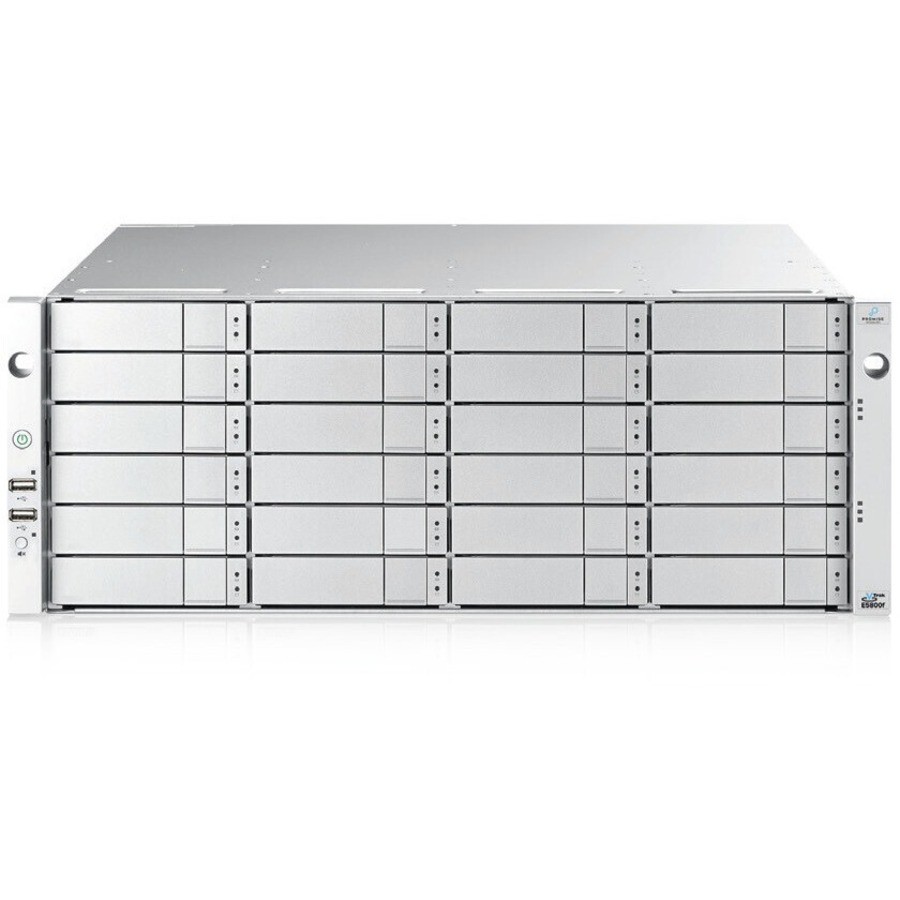

VTD5800XDX16TU
VTrak D5800XD — 384 TB (24 × 16 TB HDD)
- Capacity
- 384 TB
- Drive Configuration
- 24 × 16 TB HDD
- Ethernet Host Ports
- 4 × 10 GbE SFP+
- Controller Cache
- —
384 TB factory build on the 10 GbE controller — capacity tier between the 14 TB and 18 TB configs.
VTD5800XDX18TU
VTrak D5800XD — 432 TB (24 × 18 TB NL-SAS HDD)
- Capacity
- 432 TB
- Drive Configuration
- 24 × 18 TB NL-SAS HDD
- Ethernet Host Ports
- 4 × 10 GbE SFP+
- Controller Cache
- 32 GB (16 GB × 2)
432 TB with 32 GB cache on the 10 GbE controller for large archive or virtualization datastores.
VTD5800YXD18TX
VTrak D5800YXD — 432 TB (24 × 18 TB HDD)
- Capacity
- 432 TB
- Drive Configuration
- 24 × 18 TB HDD
- Ethernet Host Ports
- 4 × 10 GbE SFP+ + 4 × 25 GbE SFP28
- Controller Cache
- —
432 TB on the 25 GbE-capable controller — same capacity as the XD 18 TB build with faster host links.
VTD5800XDX20TU
VTrak D5800XD — 480 TB (24 × 20 TB NL-SAS HDD)
- Capacity
- 480 TB
- Drive Configuration
- 24 × 20 TB NL-SAS HDD
- Ethernet Host Ports
- 4 × 10 GbE SFP+
- Controller Cache
- 32 GB (16 GB × 2)
480 TB on the 10 GbE controller — near-maximum HDD capacity for this chassis.
VTD5800YXD20TX
VTrak D5800YXD — 480 TB (24 × 20 TB HDD)
- Capacity
- 480 TB
- Drive Configuration
- 24 × 20 TB HDD
- Ethernet Host Ports
- 4 × 10 GbE SFP+ + 4 × 25 GbE SFP28
- Controller Cache
- —
480 TB paired with 10/25 GbE host connectivity for bandwidth-hungry shared storage.
VTD5800XDX22TX
VTrak D5800XD — 528 TB (24 × 22 TB NL-SAS HDD)
- Capacity
- 528 TB
- Drive Configuration
- 24 × 22 TB NL-SAS HDD
- Ethernet Host Ports
- 4 × 10 GbE SFP+
- Controller Cache
- 32 GB (16 GB × 2)
Maximum 528 TB build (24 × 22 TB) on the 10 GbE controller with 32 GB cache.
VTD5800YXD22TX
VTrak D5800YXD — 528 TB (24 × 22 TB HDD)
- Capacity
- 528 TB
- Drive Configuration
- 24 × 22 TB HDD
- Ethernet Host Ports
- 4 × 10 GbE SFP+ + 4 × 25 GbE SFP28
- Controller Cache
- —
Maximum 528 TB build on the 25 GbE-capable controller — top capacity and fastest Ethernet in the group.
Don't see the configuration you need? Request a quote — we can source the full Promise Technology catalog, including custom drive configurations.
