SAN Storage
VTrak D5600
3U 16-bay dual-controller SAN array balancing capacity and bandwidth for media and virtualization.
Genuine VTrak D5600 hardware with full manufacturer warranty, configuration review on every order, and formal line-itemed quotes from our US-based team.
Order
VTrak D5600 Part Numbers
D5600FXD (FC + 10G SFP+)
6 part numbersAll configurations: 3U 16-bay · active-active dual controllers · Fibre Channel + 10G SFP+ host ports · expandable via 12Gb SAS JBODs · 3 yr 24×7 support
D5600FXDAEC
VTrak D5600FXD — 64 TB (16 × 4 TB HDD)
- Total Capacity
- 64 TB
- Drive Configuration
- 16 × 4 TB HDD
Entry 64 TB configuration of the dual-controller FC subsystem — the lowest-capacity starting point, with room to grow via JBOD expansion.
D5600FXDAHC
VTrak D5600FXD — 224 TB (16 × 14 TB HDD)
- Total Capacity
- 224 TB
- Drive Configuration
- 16 × 14 TB HDD
Mid-capacity 224 TB build with 14 TB drives — a balance of price per TB and headroom for shared editing or backup targets.
VTD5600FXD16TU
VTrak D5600FXD — 256 TB (16 × 16 TB HDD)
- Total Capacity
- 256 TB
- Drive Configuration
- 16 × 16 TB HDD
256 TB build using 16 TB drives — one step up from the 224 TB config in the same 16-bay chassis.
VTD5600FXD18TU
VTrak D5600FXD — 288 TB (16 × 18 TB HDD)
- Total Capacity
- 288 TB
- Drive Configuration
- 16 × 18 TB HDD
288 TB build with 18 TB drives — more capacity per bay before moving to the NL-SAS 20/22 TB configurations.
VTD5600FXD20TU
VTrak D5600FXD — 320 TB (16 × 20 TB NL-SAS HDD)
- Total Capacity
- 320 TB
- Drive Configuration
- 16 × 20 TB NL-SAS HDD
320 TB build with 20 TB NL-SAS 3.5" drives and 8-port 32Gb Fibre Channel host connectivity.
VTD5600FXD22TX
VTrak D5600FXD — 352 TB (16 × 22 TB NL-SAS HDD)
- Total Capacity
- 352 TB
- Drive Configuration
- 16 × 22 TB NL-SAS HDD
Maximum-capacity 352 TB build in this line — 22 TB NL-SAS 3.5" drives with 8-port 32Gb Fibre Channel.
D5600XD (iSCSI / SAS)
6 part numbersAll configurations: 3U 16-bay · dual RAID controllers · 10G SFP+ host ports (iSCSI/NAS) · 12Gb Mini-SAS expansion · 3 yr 24×7 support

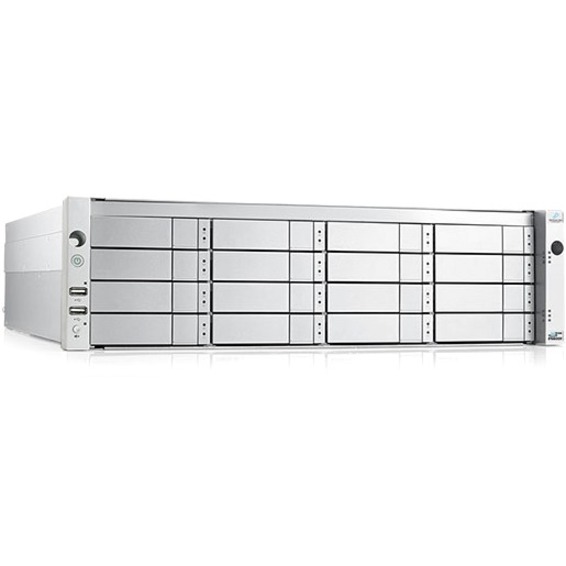

D5600XDAB0
VTrak D5600XD — Diskless 16-Bay Enclosure (Build to Order)
- Total Capacity
- —
- Drive Configuration
- None — 16 empty bays
Diskless build-to-order chassis — dual RAID controllers with 4-port 10G SFP+, 16 empty bays populated to your spec.

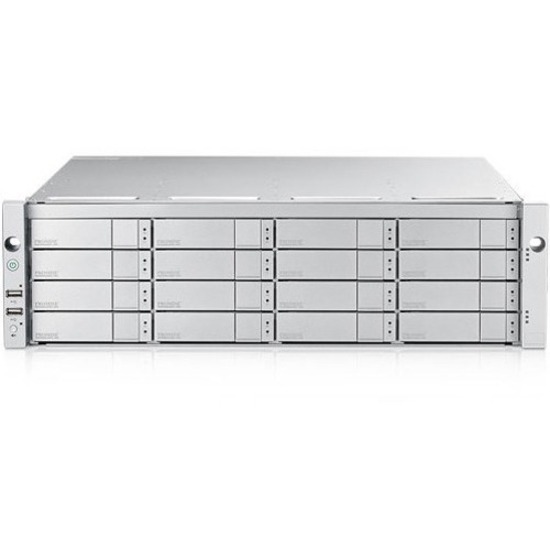

D5600XDACC
VTrak D5600XD — 128 TB (16 × 8 TB SAS HDD)
- Total Capacity
- 128 TB
- Drive Configuration
- 16 × 8 TB SAS HDD (7,200 RPM)
128 TB configuration with 7,200 RPM 12Gb SAS drives — smallest pre-populated build in this group.

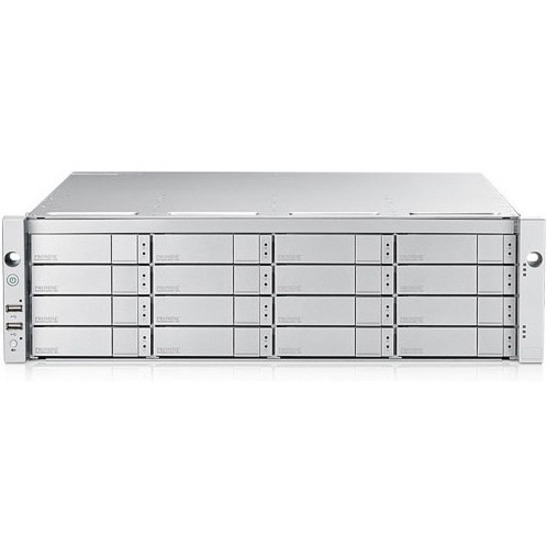

D5600XDAHC
VTrak D5600XD — 224 TB (16 × 14 TB HDD)
- Total Capacity
- 224 TB
- Drive Configuration
- 16 × 14 TB HDD
Mid-capacity 224 TB build with 14 TB drives — the iSCSI/NAS counterpart to the FXD 224 TB config, without Fibre Channel.
VTD5600XDX16TU
VTrak D5600XD — 256 TB (16 × 16 TB HDD)
- Total Capacity
- 256 TB
- Drive Configuration
- 16 × 16 TB HDD
256 TB build using 16 TB drives — one step up from the 224 TB config in the same 16-bay chassis.
VTD5600XDX18TU
VTrak D5600XD — 288 TB (16 × 18 TB HDD)
- Total Capacity
- 288 TB
- Drive Configuration
- 16 × 18 TB HDD
288 TB build with 18 TB drives — more capacity per bay before the top 320 TB NL-SAS configuration.
VTD5600XDX20TU
VTrak D5600XD — 320 TB (16 × 20 TB NL-SAS HDD)
- Total Capacity
- 320 TB
- Drive Configuration
- 16 × 20 TB NL-SAS HDD
Maximum-capacity 320 TB build in this group, using 20 TB NL-SAS 3.5" drives.
Don't see the configuration you need? Request a quote — we can source the full Promise Technology catalog, including custom drive configurations.
