JBOD Expansion
Vess J3000 Series
JBOD expansion shelves that scale Vess R3000 capacity without adding controllers.
Genuine Vess J3000 Series hardware with full manufacturer warranty, configuration review on every order, and formal line-itemed quotes from our US-based team.
Order
Vess J3000 Series Part Numbers
Systems

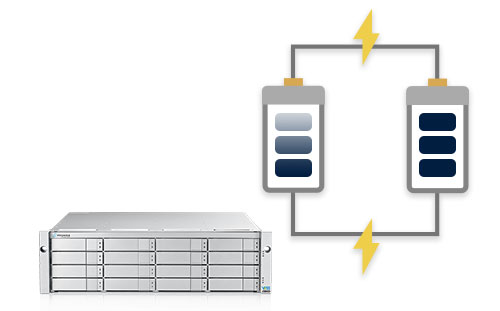

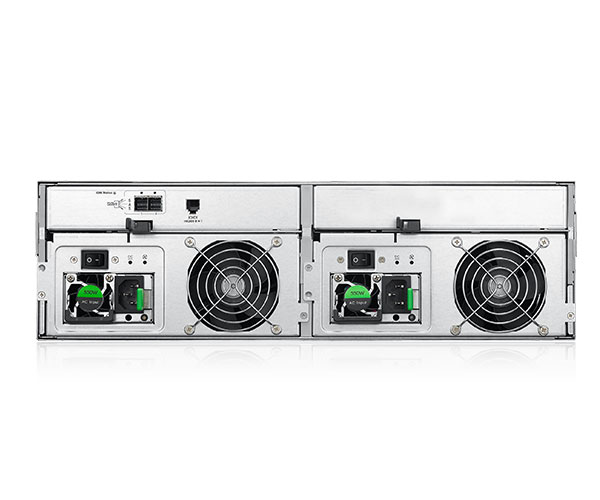

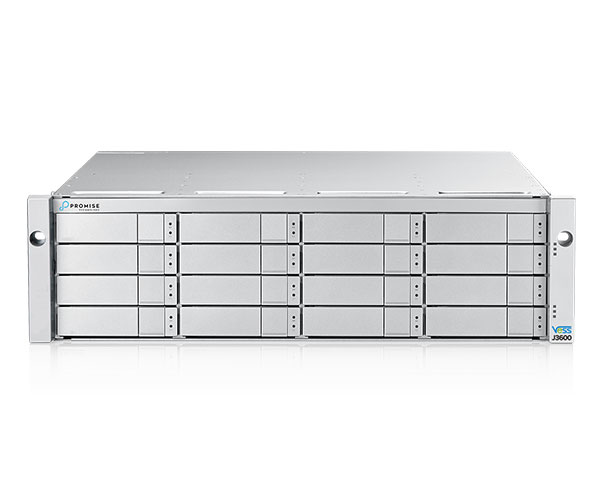

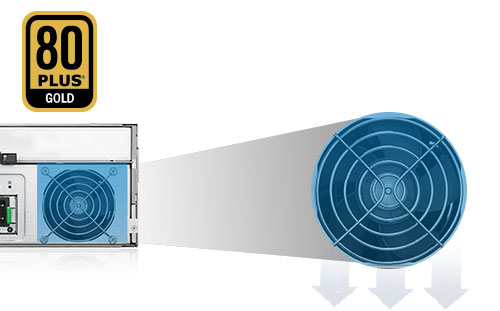

12 part numbersAll configurations: 3U 16-bay 12G SAS JBOD expansion for Vess R3000 / A6000 / A7000 · redundant 80 Plus power supplies

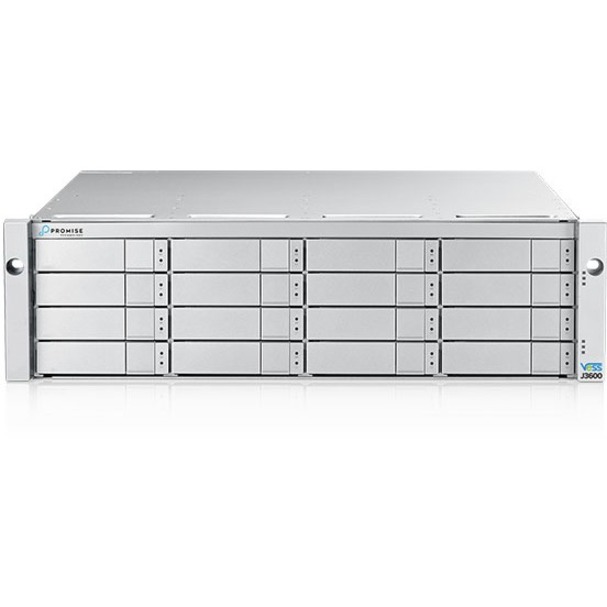

J3600SDNX
Vess J3600sD — Diskless 16-Bay Expansion Chassis (Dual I/O)
- Raw Capacity
- — (diskless)
- Drive Configuration
- 16 empty bays
- Drive Type
- —
- SAS I/O Modules
- Dual (sD)
Empty dual-I/O-module chassis for populating your own 3.5" SAS or SATA drives — the flexible starting point when capacity is bought separately.
VJ3600XSSXT04T
Vess J3600sS — 64 TB (16 × 4 TB SAS SSD)
- Raw Capacity
- 64 TB
- Drive Configuration
- 16 × 4 TB
- Drive Type
- SAS SSD
- SAS I/O Modules
- Single (sS)
The only all-flash build in the series: 16 SAS SSDs for expansion shelves that prioritize responsiveness over bulk capacity.

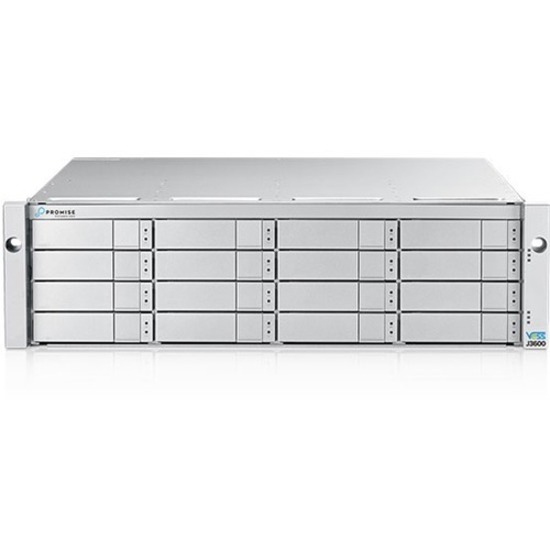

J3600SDQS6
Vess J3600sD — 96 TB (16 × 6 TB HDD)
- Raw Capacity
- 96 TB
- Drive Configuration
- 16 × 6 TB
- Drive Type
- HDD
- SAS I/O Modules
- Dual (sD)
Entry HDD capacity point with dual I/O modules for redundant-path cabling to a dual-controller Vess RAID head.
J3600SDQS8
Vess J3600sD — 128 TB (16 × 8 TB HDD)
- Raw Capacity
- 128 TB
- Drive Configuration
- 16 × 8 TB
- Drive Type
- HDD
- SAS I/O Modules
- Dual (sD)
Steps the dual-I/O shelf up to 8 TB drives — a mid-size expansion increment for growing surveillance or archive pools.
J3600SSQS10
Vess J3600sS — 160 TB (16 × 10 TB HDD)
- Raw Capacity
- 160 TB
- Drive Configuration
- 16 × 10 TB
- Drive Type
- HDD
- SAS I/O Modules
- Single (sS)
Single-I/O-module shelf with 10 TB drives — lower-cost expansion where a single SAS path to the RAID head is sufficient.
J3600SSQS14
Vess J3600sS — 224 TB (16 × 14 TB HDD)
- Raw Capacity
- 224 TB
- Drive Configuration
- 16 × 14 TB
- Drive Type
- HDD
- SAS I/O Modules
- Single (sS)
224 TB on a single-I/O shelf — same capacity as the sD 14 TB build at a simpler single-path configuration.
J3600SDQS14
Vess J3600sD — 224 TB (16 × 14 TB HDD)
- Raw Capacity
- 224 TB
- Drive Configuration
- 16 × 14 TB
- Drive Type
- HDD
- SAS I/O Modules
- Dual (sD)
224 TB with dual I/O modules — pick this over the sS 14 TB build when you need redundant SAS paths to the controller.

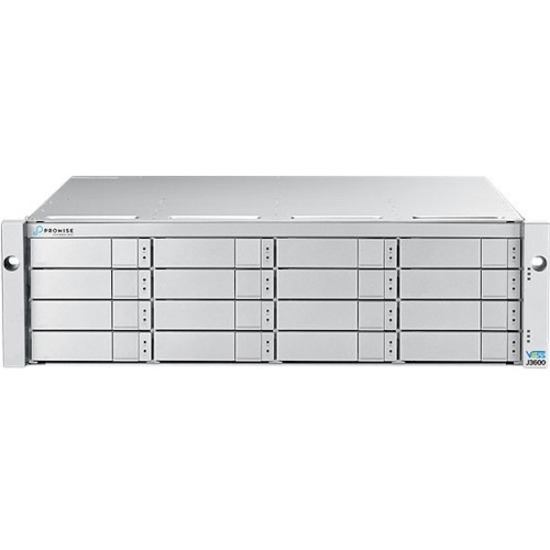

VJ3600XSDX16TU
Vess J3600sD — 256 TB (16 × 16 TB HDD)
- Raw Capacity
- 256 TB
- Drive Configuration
- 16 × 16 TB
- Drive Type
- HDD
- SAS I/O Modules
- Dual (sD)
Quarter-petabyte dual-I/O shelf using 16 TB drives — a dense step between the 14 TB and 18 TB builds.
VJ3600XSSX18TU
Vess J3600sS — 288 TB (16 × 18 TB HDD)
- Raw Capacity
- 288 TB
- Drive Configuration
- 16 × 18 TB
- Drive Type
- HDD
- SAS I/O Modules
- Single (sS)
288 TB single-I/O variant of the 18 TB build for deployments that don't require dual-path cabling.
VJ3600XSDX18TU
Vess J3600sD — 288 TB (16 × 18 TB HDD)
- Raw Capacity
- 288 TB
- Drive Configuration
- 16 × 18 TB
- Drive Type
- HDD
- SAS I/O Modules
- Dual (sD)
288 TB with dual I/O modules — the redundant-path counterpart to the sS 18 TB shelf.
VJ3600XSDX20TX
Vess J3600sD — 320 TB (16 × 20 TB NL-SAS HDD)
- Raw Capacity
- 320 TB
- Drive Configuration
- 16 × 20 TB
- Drive Type
- NL-SAS HDD
- SAS I/O Modules
- Dual (sD)
320 TB of nearline SAS on a dual-I/O shelf — high-density expansion for large surveillance and archive systems.
VJ3600XSDX22TU
Vess J3600sD — 352 TB (16 × 22 TB NL-SAS HDD)
- Raw Capacity
- 352 TB
- Drive Configuration
- 16 × 22 TB
- Drive Type
- NL-SAS HDD
- SAS I/O Modules
- Dual (sD)
Maximum-capacity build in the series: 352 TB of nearline SAS with dual I/O modules for redundant paths.
Don't see the configuration you need? Request a quote — we can source the full Promise Technology catalog, including custom drive configurations.
