NVR Storage Appliances

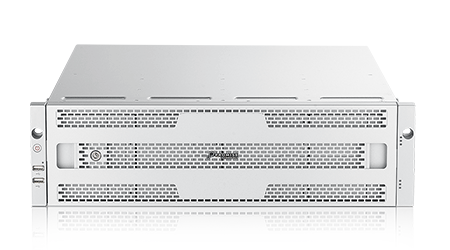

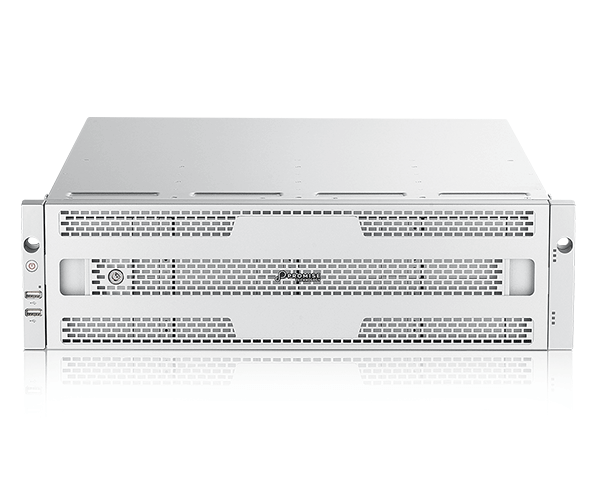

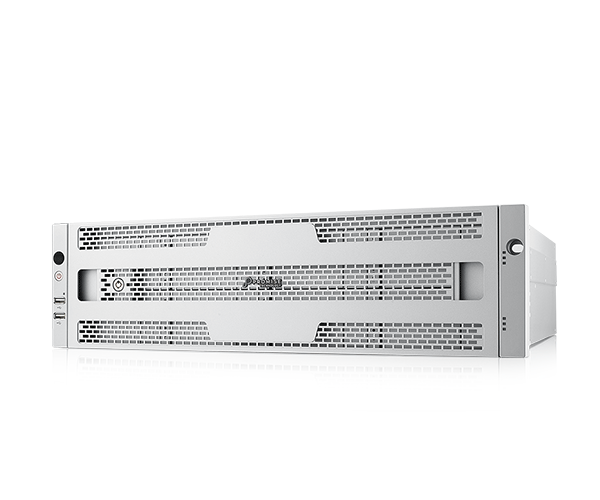

Vess A7600
High-density surveillance appliance for city-scale and enterprise camera networks.
Genuine Vess A7600 hardware with full manufacturer warranty, configuration review on every order, and formal line-itemed quotes from our US-based team.
Order
Vess A7600 Part Numbers
Systems
3 part numbersAll configurations: 3U 16-bay rackmount · Intel Xeon E5-2603 v4 · 7,200 RPM 3.5" SATA HDDs · 2 × Gigabit Ethernet + IPMI
VA7600HCAWNE
Vess A7600 — 64 TB (4 × 16 TB SATA HDD), Windows 10
- Total Capacity
- 64 TB
- Drive Configuration
- 4 × 16 TB SATA HDD, 7,200 RPM
- Empty Bays
- 12
- System Memory
- 8 GB
- Operating System
- Windows 10
Entry configuration with only 4 of 16 bays populated, leaving 12 empty bays to add capacity as camera counts grow.
VA7600HCAWPE
Vess A7600 — 96 TB (6 × 16 TB SATA HDD), Windows 10
- Total Capacity
- 96 TB
- Drive Configuration
- 6 × 16 TB SATA HDD, 7,200 RPM
- Empty Bays
- 10
- System Memory
- 8 GB
- Operating System
- Windows 10
Mid-tier build with 6 × 16 TB drives installed and 10 empty bays remaining for future expansion.

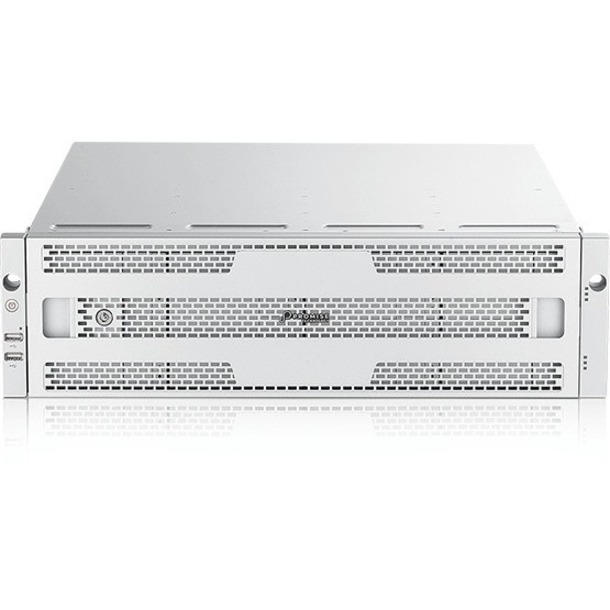

VA7600HMAWPL
Vess A7600 — 96 TB (6 × 16 TB SATA HDD), Windows Server 2016
- Total Capacity
- 96 TB
- Drive Configuration
- 6 × 16 TB SATA HDD, 7,200 RPM
- Empty Bays
- 10
- System Memory
- 2 × 8 GB (16 GB)
- Operating System
- Windows Server 2016
Pairs the 96 TB drive set with 2 × 8 GB memory and Windows Server 2016 for server-class VMS deployments.
ServicePlus & Support
2 part numbersBoth plans: 2-year warranty extension for a Vess A7600 system·Extension Term: 2 yr
VA7600EW1YR0
Extended Warranty — 2 Years, Vess A7600 Without HDD
$1,367.52
- HDD Coverage
- Not included
Adds 2 years of extended warranty coverage for a Vess A7600 system, excluding the hard drives.
VA7600EW1YRA
Extended Warranty — 2 Years, Vess A7600 With HDD
$2,510.17
- HDD Coverage
- Included
Adds 2 years of extended warranty coverage for a Vess A7600 system, including the installed hard drives.
Don't see the configuration you need? Request a quote — we can source the full Promise Technology catalog, including custom drive configurations.
