Desktop Thunderbolt RAID
PegasusPro R8
8-bay shared-storage appliance with direct Thunderbolt connections — collaboration without a SAN.
Genuine PegasusPro R8 hardware with full manufacturer warranty, configuration review on every order, and formal line-itemed quotes from our US-based team.
Order
PegasusPro R8 Part Numbers
Systems
6 part numbersAll configurations: 8-bay desktop tower · Intel Core i5 · Thunderbolt 3 target mode + 10G Ethernet (DAS + shared NAS with FileBoost)
PPR8XXX10BS02U
PegasusPro R8 — 15.36 TB (8 × 1.92 TB SSD)
- Total Capacity
- 15.36 TB
- Drive Configuration
- 8 × 1.92 TB
- Drive Type
- SSD
Entry all-flash build for editors who want SSD responsiveness on shared projects over capacity.
PPR8XXX10BS04U
PegasusPro R8 — 30.72 TB (3.84 TB SSDs)
- Total Capacity
- 30.72 TB
- Drive Configuration
- 3.84 TB SSDs (drive count not confirmed by source data)
- Drive Type
- SSD
Doubles the all-flash capacity of the 15.36 TB model using 3.84 TB SSDs.

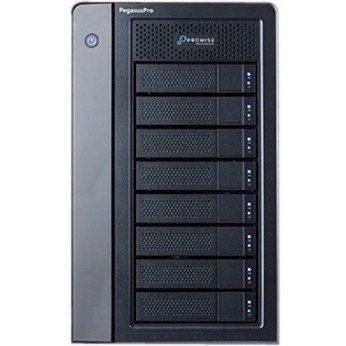

PPR8XXX10B04TU
PegasusPro R8 — 32 TB (8 × 4 TB SATA HDD)
- Total Capacity
- 32 TB
- Drive Configuration
- 8 × 4 TB
- Drive Type
- SATA HDD
Lowest-cost-per-TB hard-drive configuration; the starting point for small collaborative teams.
PPR8XXX10B08TU
PegasusPro R8 — 64 TB (8 × 8 TB SATA HDD)
- Total Capacity
- 64 TB
- Drive Configuration
- 8 × 8 TB
- Drive Type
- SATA HDD
Mid-range HDD build with twice the capacity of the 32 TB model for growing project libraries.
PGPR8001BT16TU
PegasusPro R8 — 128 TB (8 × 16 TB SATA HDD)
- Total Capacity
- 128 TB
- Drive Configuration
- 8 × 16 TB
- Drive Type
- SATA HDD
High-capacity HDD configuration with 10GBASE-T Ethernet for teams sharing large 4K/8K media pools.
PPR8XXX10B18TU
PegasusPro R8 — 144 TB (8 × 18 TB SATA HDD)
- Total Capacity
- 144 TB
- Drive Configuration
- 8 × 18 TB
- Drive Type
- SATA HDD
Maximum-capacity build of the R8, shipping with 32 GB (2 × 16 GB) memory for the shared-storage engine.
Spares & Accessories
6 part numbersAll items are factory spare modules for the PegasusPro R8
PPR8XXXXXXS02X
SSD Drive Module — 1.92 TB (PegasusPro R8 / VTrak N1008)
- Capacity
- 1.92 TB
- Type
- SSD module
- Compatible With
- PegasusPro R8, VTrak N1008
Spare 1.92 TB SSD module matching the drives in the 15.36 TB all-flash system.
PPR8XXXXXXS04X
SSD Drive Module — 3.84 TB (PegasusPro R8 / VTrak N1008)
- Capacity
- 3.84 TB
- Type
- SSD module
- Compatible With
- PegasusPro R8, VTrak N1008
Spare 3.84 TB SSD module matching the drives in the 30.72 TB all-flash system.
PPR8XXXXXX04TX
HDD Drive Module — 4 TB SATA (PegasusPro R8 / VTrak N1008)
- Capacity
- 4 TB
- Type
- SATA HDD module
- Compatible With
- PegasusPro R8, VTrak N1008
Spare 4 TB SATA HDD module matching the drives in the 32 TB system.
PPR8XXXXXX08TX
HDD Drive Module — 8 TB (PegasusPro R8 / VTrak N1008)
- Capacity
- 8 TB
- Type
- HDD module
- Compatible With
- PegasusPro R8, VTrak N1008
Spare 8 TB HDD module matching the drives in the 64 TB system.
PPR8XXXXXX18TX
HDD Drive Module — 18 TB (PegasusPro R8 / VTrak N1008)
- Capacity
- 18 TB
- Type
- HDD module
- Compatible With
- PegasusPro R8, VTrak N1008
Spare 18 TB HDD module matching the drives in the 144 TB maximum-capacity system.
PPR8XXXTTHXXTX
Thunderbolt 3 Target HBA — PegasusPro R8 Spare
- Capacity
- —
- Type
- Thunderbolt 3 target HBA
- Compatible With
- PegasusPro R8
Replacement Thunderbolt 3 target adapter that provides the R8's direct-attach DAS connection to client workstations.
ServicePlus & Support
3 part numbersAll plans cover PegasusPro R8 systems
PPR8XXX2EWHDDX
ServicePlus Extended Warranty — 2 Years (PegasusPro R8)
- Term
- 2 yr
- Service Type
- Extended warranty
Adds two years of Promise ServicePlus warranty coverage beyond the standard term for an R8 HDD system.
PPR8XXX2KYHDDX
HDD Disposal Service — 2 Years (PegasusPro R8)
- Term
- 2 yr
- Service Type
- HDD disposal / drive retention
Two-year drive-retention option: replaced hard drives stay with you for secure disposal instead of being returned on RMA.
PPR8XXX3KYHDDX
HDD Disposal Service — 3 Years (PegasusPro R8)
- Term
- 3 yr
- Service Type
- HDD disposal / drive retention
Three-year version of the drive-retention service for teams with longer data-security compliance windows.
Don't see the configuration you need? Request a quote — we can source the full Promise Technology catalog, including custom drive configurations.
