Desktop Thunderbolt RAID
PegasusPro R16
16-bay shared-storage appliance — PegasusPro capacity for multi-seat editorial teams.
Genuine PegasusPro R16 hardware with full manufacturer warranty, configuration review on every order, and formal line-itemed quotes from our US-based team.
Order
PegasusPro R16 Part Numbers
Systems
3 part numbersAll items for the 16-bay PegasusPro R16 hybrid DAS/NAS appliance · Intel Core i7 · Thunderbolt 3 + 10GBase-T Ethernet
PPR16XX10B08TU
PegasusPro R16 — 128 TB (16 × 8 TB SATA HDD)
- Total Capacity
- 128 TB
- Drive Configuration
- 16 × 8 TB SATA HDD
- System Memory
- —
- Item Type
- Complete system
Entry full-bay build: all 16 bays populated with 8 TB SATA drives on the Core i7 engine — the lowest-capacity complete R16 configuration.

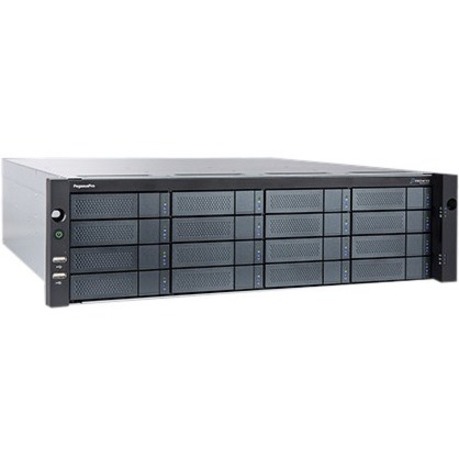

PPR16XX10B16TU
PegasusPro R16 — 256 TB (16 × 16 TB SATA HDD)
- Total Capacity
- 256 TB
- Drive Configuration
- 16 × 16 TB SATA HDD
- System Memory
- 64 GB
- Item Type
- Complete system
Doubles the entry model to 256 TB with 16 TB drives and 64 GB RAM — sized for larger multi-editor project stores over 10GBase-T or Thunderbolt.
PPR16XXSAHJBX
SAS HBA Module for PegasusPro R16 — JBOD Expansion
- Total Capacity
- —
- Drive Configuration
- —
- System Memory
- —
- Item Type
- SAS HBA module (JBOD expansion)
Adds a SAS host bus adapter to an existing R16 so capacity can grow beyond 16 bays by attaching external JBOD expansion shelves.
Spares & Accessories
12 part numbersAll items fit the 16-bay PegasusPro R16 chassis
PPR16DX10B08TU
PegasusPro R16 — 128 TB (16 × 8 TB HDD), Dual PSU
- Capacity
- 128 TB
- Drive Configuration
- 16 × 8 TB HDD
- Item Type
- Full system, dual PSU
128 TB full-bay build with redundant dual power supplies — the smallest capacity in this dual-PSU series.
PPR16DX10B10TU
PegasusPro R16 — 160 TB (16 × 10 TB HDD)
- Capacity
- 160 TB
- Drive Configuration
- 16 × 10 TB HDD
- Item Type
- Full system, 2 m TB3 cable
Steps up to 10 TB drives for 160 TB raw capacity; ships with a 2 m Thunderbolt 3 cable for the Core i7 appliance.
PPR16DX10B14TU
PegasusPro R16 — 224 TB (16 × 14 TB HDD)
- Capacity
- 224 TB
- Drive Configuration
- 16 × 14 TB HDD
- Item Type
- Full system, 2 m TB3 cable
Mid-to-high 224 TB build on 14 TB drives with a 2 m Thunderbolt 3 cable — more headroom without moving to the largest drives.
PPR16DX10B16TT
PegasusPro R16 — 256 TB (16 × 16 TB HDD), Dual PSU
- Capacity
- 256 TB
- Drive Configuration
- 16 × 16 TB HDD
- Item Type
- Full system, dual PSU
256 TB on 16 TB drives with redundant dual power supplies for teams that need both capacity and uptime.
PPR16DX10B18TU
PegasusPro R16 — 288 TB (16 × 18 TB HDD)
- Capacity
- 288 TB
- Drive Configuration
- 16 × 18 TB HDD
- Item Type
- Full system, TB3 cable
288 TB build on 18 TB drives, supplied with a Thunderbolt 3 cable — near the top of the R16 capacity range.
PPR16XXXXD20TX
PegasusPro R16 — 320 TB (16 × 20 TB HDD), Dual PSU
- Capacity
- 320 TB
- Drive Configuration
- 16 × 20 TB HDD
- Item Type
- Full system, dual PSU
Maximum-capacity R16 in this lineup: 320 TB on 20 TB drives with redundant dual power supplies.
PPR16XXXXXS04X
SSD Module 3.84 TB for PegasusPro R16 — with Carrier
- Capacity
- 3.84 TB
- Drive Configuration
- 1 × 3.84 TB SSD
- Item Type
- Spare SSD module w/ carrier
Single 3.84 TB SSD in an R16 drive carrier — swaps into a bay when flash performance is needed alongside or instead of HDDs.
PPR16XXXXX08TX
HDD Module 8 TB for PegasusPro R16
- Capacity
- 8 TB
- Drive Configuration
- 1 × 8 TB HDD
- Item Type
- Spare HDD module
Single 8 TB drive module matching the 128 TB factory build — the standard spare for rebuilds or cold-spare stock.
PPR16XXXXX18TX
HDD Module 18 TB SATA for PegasusPro R16 — with Carrier
- Capacity
- 18 TB
- Drive Configuration
- 1 × 18 TB SATA HDD
- Item Type
- Spare HDD module w/ carrier
Single 18 TB SATA drive in an R16 carrier — the matching spare for 288 TB systems or a per-bay capacity upgrade.
PEPTARGHBA
Thunderbolt 3 Target HBA for PegasusPro R16 — Spare
- Capacity
- —
- Drive Configuration
- —
- Item Type
- Thunderbolt 3 target HBA
Replacement Thunderbolt 3 target host bus adapter card for the R16 — restores the direct-attached Thunderbolt path.
PPR16XX2MCXXXX
Thunderbolt 3 Cable for PegasusPro — 2 m, 40 Gb/s
- Capacity
- —
- Drive Configuration
- —
- Item Type
- Thunderbolt 3 cable, 2 m (40 Gb/s)
Spare 2 m Thunderbolt 3 cable rated at 40 Gb/s — a longer host connection or replacement for the included cable.
PPR16XXCCVXXXX
Cable Cover for PegasusPro R16
- Capacity
- —
- Drive Configuration
- —
- Item Type
- Cable cover
Replacement rear cable cover for the R16 chassis — tidies and protects host and power cabling.
ServicePlus & Support
7 part numbersPromise ServicePlus contracts for PegasusPro systems purchased with HDDs
PPR16R82PWHDDX
ServicePlus 24×7 Phone & Web Support — 2 Yr, with HDD
- Term
- 2 yr
- Coverage
- 24×7 phone & web support
- Applies To
- PegasusPro w/ HDD
Two years of around-the-clock phone and web technical support for a PegasusPro system with drives — no onsite component.
PPR16R83PWHDDX
ServicePlus 24×7 Phone & Web Support — 3 Yr
- Term
- 3 yr
- Coverage
- 24×7 phone & web support
- Applies To
- PegasusPro / VTrak N
Three years of 24×7 phone and web technical support covering PegasusPro and VTrak N systems — one extra year over the 2-yr plan.
PPR16XX2EWHDDX
Extended Warranty — 2 Yr, PegasusPro R16
- Term
- 2 yr
- Coverage
- Extended hardware warranty
- Applies To
- PegasusPro R16
Adds two years of hardware warranty coverage beyond the standard term for a PegasusPro R16 system.
PPR16R82PSPHDX
ServicePlus NBD Onsite — 2 Yr, PegasusPro/VTrak N with HDD
- Term
- 2 yr
- Coverage
- Next-business-day onsite service
- Applies To
- PegasusPro / VTrak N w/ HDD
Two-year next-business-day onsite service plan for PegasusPro and VTrak N systems with drives — the faster-response tier.
PPR16R83PSPHDX
ServicePlus NBD Onsite — 3 Yr, PegasusPro/VTrak N with HDD
- Term
- 3 yr
- Coverage
- Next-business-day onsite service
- Applies To
- PegasusPro / VTrak N w/ HDD
Three-year next-business-day onsite service for PegasusPro and VTrak N with drives — longest onsite coverage in this lineup.
PPR16XX2KYHDDX
HDD Disposal Service — 2 Yr, PegasusPro R16
- Term
- 2 yr
- Coverage
- HDD disposal service
- Applies To
- PegasusPro R16
Two-year drive disposal service for the R16 — failed drives are handled under the plan, useful where data-bearing media must not be returned.
PPR16XX3KYHDDX
HDD Disposal Service — 3 Yr, PegasusPro R16
- Term
- 3 yr
- Coverage
- HDD disposal service
- Applies To
- PegasusPro R16
Three-year version of the R16 drive disposal service — matches longer support terms so drive handling stays covered.
Don't see the configuration you need? Request a quote — we can source the full Promise Technology catalog, including custom drive configurations.
